Anchorsana Fix
The particularly fine constituent materials allow adequate anchoring even in the presence of a small space between hole and connectors. By mixing Anchorsana Fix with different water contents, the product passes from thixotropic consistencies (23% water) to fluid gel consistencies (30% water), allowing any type of anchoring, from overhead to inclinations towards the bass. The product does not contain resins and solvents and can also be used indoors, subject to the usual precautions necessary when handling materials based on alkaline and irritating powders such as lime (use suitable personal protective equipment, such as gloves and protective goggles).
Fields of application
Fixing and anchoring, in masonry bodies, of rigid connectors, jib connectors, inserts, bars with improved adherence, anchors. It develops great adhesion on materials of different nature: metal, fiberglass, basalt.
Allowed supports
Plasters
Concrete
Cement-based or lime-based mortars
Bricks
Tuff
Mixed walls (bricks and stones)
Brickworks
Stone walls
Floor screed
Preparation of supports
Blow with compressed air and forced suction of the housing holes. The application surfaces must be clean, free of dirt, moving, crumbly and incoherent parts, dust, etc., suitably saturated with water until reaching the condition of "saturated with dry surface".
Mode of use
Pour about 2/3 of the mixing water into the mixer; gradually add Anchorsana Fix and the water still required, continuing to mix, until a homogeneous, lump-free mixture of the desired consistency is obtained. Apply with a trowel or by casting. The mixing water indicatively required is equal to 23% by weight for thixotropic doughs, and to 30% by weight for doughs with a plastic-fluid consistency.
Technical specifications
Compressive strength after 1,5 hours
EN 12190
> 4 MPa
Compressive strength after 1 day
EN 12190
> 13 MPa
Compressive strength after 28 days
EN 12190
> 30 MPa
Flexural strength at 1 day
EN 12190
> 4 MPa
Flexural strength after 28 days
EN 12190
> 6 MPa
Permeability to water vapor
≤ 35
Complete hardening at 20°C
70 min
Capillary absorption
UNI EN 1015-18
< 0.50 kg•h^0.5/m²
Bonding force
UNI EN 1015-12
> 1.0 N/mm²
Reaction to fire
EN 13501-1
A1
Static elastic modulus
EN 13412
15000 N/mm²
Consumption
Approximately 1.6 kg of Anchorsana Fix for each cubic decimeter of volume to be filled.
Packaging and dimensions

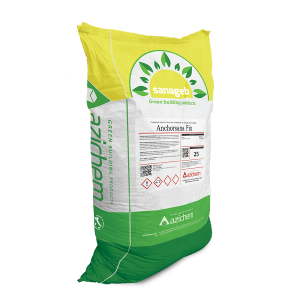

Bag 25 kg
Pallet: 50 x (Bag 25 kg)
Storage and conservation
Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
Warnings
The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.
Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.
The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.
Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
It is forbidden to dispose of the product and/or packaging in the environment.
