Floor Q

Structural, fibre reinforced fluid mortar for very low thickness screeds

This rheoplastic, composite cementitious grout with controlled-shrinkage and super-fluid consistency is fibre-reinforced with a special mix of glass and polypropylene fibres, having a base of high-strength cements, polymeric modifiers, anti-shrinkage agents, super-pozzolanic reactive fillers and selected siliceous aggregates. Ideal for restoring the thickness of concrete removed by milling, of old concrete flooring (with a reconstruction thickness from 15 mm to 40 mm), along with dimensional adjustments, structural reintegration and so on.
Components
Single-component
Appearance
Powder
Customs code
3824 5090

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    EN 13813EN 1504-3C60 F7UNI PdR 88:2020
    Lines of belonging
    Linea prodotto Floor
    Linea prodotto Infratech
    Thematic site
    Grout Power
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products
    Fields of application

    Repair and cladding industrial concrete floors, structural restoration, dimensional adjustments, increases in the resistant section, reconstruction of the thickness of the concrete removed by milling, etc.


    Allowed supports
    Concrete
    Floor screed
    Preparation of supports

    The surfaces of application should be clean and free of any soiling, crumbling and non-adhering parts, dust, etc., saturated with water. In the case of surfaces to be rebuilt after milling, the areas of reconstruction will have to be in as regular a shape as possible (as similar to a square as possible); the thickness should be as homogeneous as possible; finally the section of the pre-existing flooring to be filled should be reminiscent of the shape of a trapezium which widens toward the bottom (this is in order to anchor the "patch" perfectly in the seat of reconstruction and to avoid its detachment, given the slightly expansive properties of the product).


    Mode of use

    It is necessary to provide a suitable bonding bridge between the part to be reconstructed and the reconstruction material. There are 2 alternative ways of doing this: - Roll out the specific epoxy primer on the prepared surface, using a roller or a brush, for structural construction joints Syntech RGS. - Prepare adequate additional reinforcement, parallel to the bottom of the reconstruction, consisting of electrowelded mesh (2 mm wire, 5x5 cm mesh) at a distance from the bottom of half the thickness, attached to the bottom itself by "L"-shaped steel bars, with improved adhesion and a diameter of 8 mm, inserted in holes and secured by expansive cement micro-mortar Grout Micro-J or polyester resin in a two-compartment extrudable cartridge PROFIX. For the preparation of the mortar insert 2/3 of the total mix water in the mixer, gradually add the product and the remaining water, until you obtain a uniform mix of the desired consistency. Pour the mixture prepared in the seat of reconstruction, prop it up and level it until it is perfectly smooth.


    Application methods
    Pour out
    Brick trowel
    Finishing trowel
    Spatula
    Straight edge
    Tool cleaning
    Water
    Key features
    Highlighted product
    Highlighted product
    Max. recommended thickness
    Max. recommended thickness: 50 mm
    Maximum diameter of aggregate
    Maximum diameter of aggregate: 5 mm
    Min. recommended thickness
    Min. recommended thickness: 20 mm
    Mix with water
    Mix with water: 11-13 %
    Nonflammable
    Nonflammable
    Pot-life
    Pot-life: 60 min
    Shelf-life
    Shelf-life: 12 months
    Temperature of use
    Temperature of use: +5 / +35 ยฐC
    UV-resistant
    UV-resistant
    Technical specifications

    Compressive strength after 1 day
    UNI EN 1015-11

    > 40 N/mmยฒ

    Compressive strength after 7 days
    UNI EN 1015-11

    > 75 N/mmยฒ

    Compressive strength after 28 days
    UNI EN 1015-11

    > 85 N/mmยฒ

    Flexural strength at 1 day
    UNI EN 1015-11

    > 6 N/mmยฒ

    Flexural strength after 7 days
    UNI EN 1015-11

    > 10 N/mmยฒ

    Flexural strength after 28 days
    UNI EN 1015-11

    > 10 N/mmยฒ

    Wear resistance
    UNI EN 13892-3

    6.5 cmยณ/50cmยฒ

    Static elastic modulus
    EN 13412

    28000 N/mmยฒ

    Water penetration under pressure (5 bar for 72 hours)
    UNI EN 12390-8

    < 5 mm

    Density
    UNI EN 1015-6

    2300 kg/mยณ

    Capillary absorption
    UNI EN 13057

    0.36 kgโ€ขh^0.5/mยฒ

    Bonding force
    UNI EN 1015-12

    2.0 N/mmยฒ
    Consumption

    Approximately 21 kg/m² of Floor Q for every centimetre of thickness to be implemented (approximately 2100 kg per cubic metre).

    Available colors
    Gray
    Packaging and dimensions

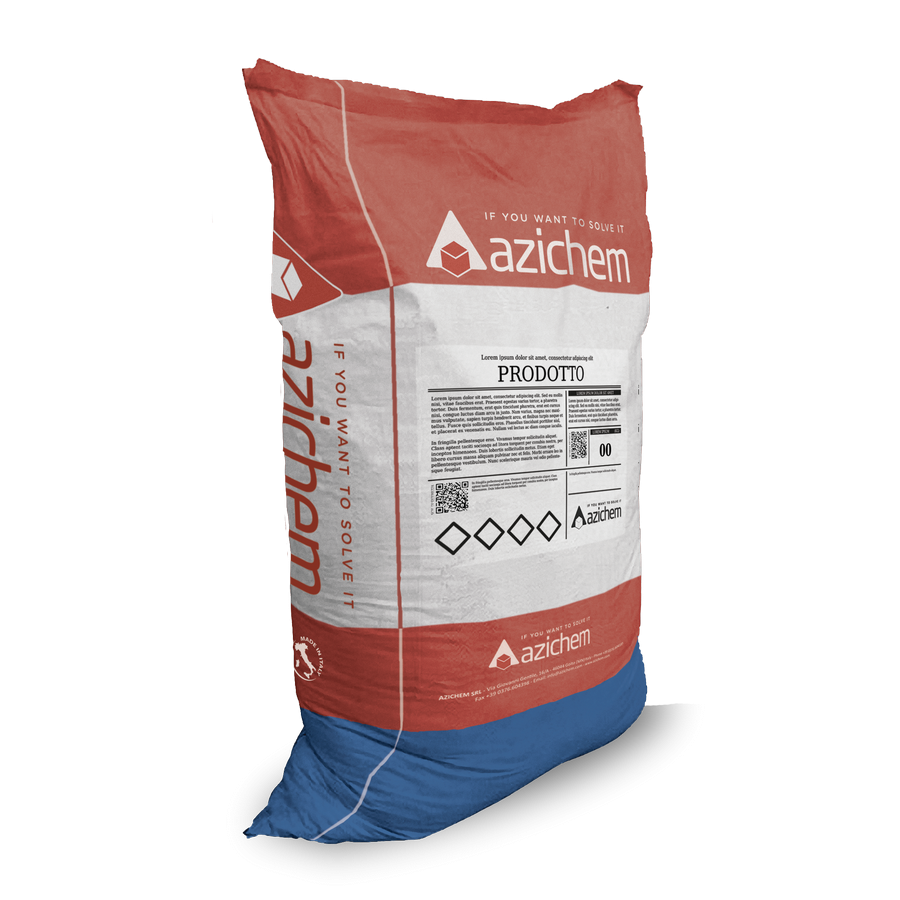

    Bag 25 kg
    Storage and conservation
    Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
    Additional content

    Warnings
    The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
