Grout Fill
Grout Fill achieves fluid and hyperfluid workability even with very low water / cement ratios (<0.4), thus resulting perfectly homogeneous, pourable, self-leveling and without water exudation phenomena. The very fine granulometry of the aggregates allows the perfect filling of spaces and particularly narrow discontinuities (<0.5 cm). The capillary absorption of the applied micro-mortar is very low, allowing great resistance to freeze-thaw cycles and washout. Grout Fill achieves extremely high mechanical performance and is rich in microsilicates with pozzolanic activity and special additives that make it extremely durable even if positioned in particularly aggressive environments (due to contamination by chlorides, sulphates, marine atmospheres, fuels and automotive oils).
Fields of application
Filling the joints (vanishing points) in urban floorings in porphyry, stone slabs etc., in new installations and in the reinforcement of existing installations. Anchorages and rigid seals in general.
Allowed supports
Concrete
Floor screed
Asphalt
Porphyry and natural stones
Preparation of supports
Remove the soilings, the crumbling and non-adhering parts and saturate beforehand with water.
Mode of use
Pour about 2/3 of the required mixture water in the mixer (about 3.5 -4 litres total per bag); gradually add the product and the water still required to get the desired consistency. Continue mixing until you obtain a homogeneous, lump-free mortar. Pour the compound thus obtained in the vanishing points to be filled.
Technical specifications
Compressive strength after 1 day
UNI EN 12190
> 28 N/mm²
Compressive strength after 7 days
UNI EN 12190
> 70 N/mm²
Compressive strength after 28 days
UNI EN 12190
> 85 N/mm²
Flexural strength at 1 day
UNI EN 196/1
> 7 N/mm²
Flexural strength after 7 days
UNI EN 196/1
> 11 N/mm²
Flexural strength after 28 days
UNI EN 196/1
> 12 N/mm²
No bleeding according to UNI 8998
Capillary absorption
UNI EN 13057
0.08
Chloride content
UNI EN 1542
0.002 %
Bonding force
UNI EN 1015-12
> 2.5 N/mm²
Consumption
Approximately 1800 kg of Grout Fill for each cubic metre of volume to be filled.
Packaging and dimensions

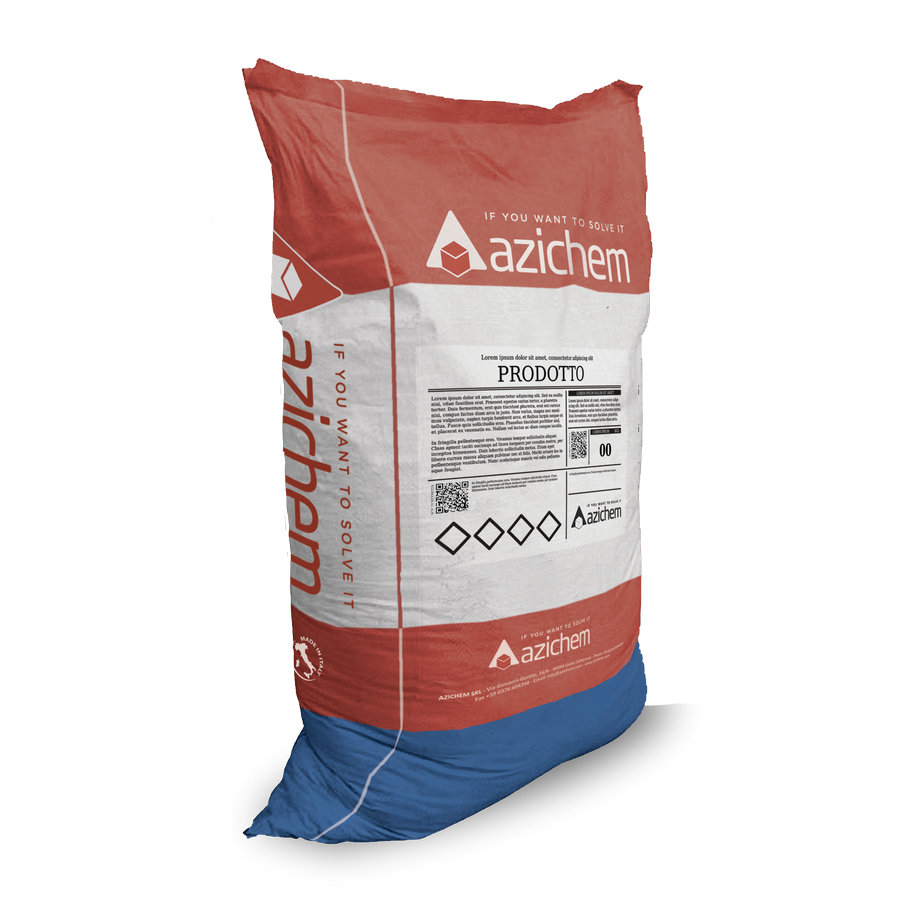

Bag 25 kg
Pallet: 50 x (Bag 25 kg)
Storage and conservation
Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
Warnings
Do not apply in the presence of stagnant water and direct solar irradiation, in anticipation of atmospheric precipitation and/or sudden drops in temperature.
Treat the hardening and the damp protection fresh mortar placed on site .The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.
Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.
The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.
Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
It is forbidden to dispose of the product and/or packaging in the environment.
