Readymesh MF-500

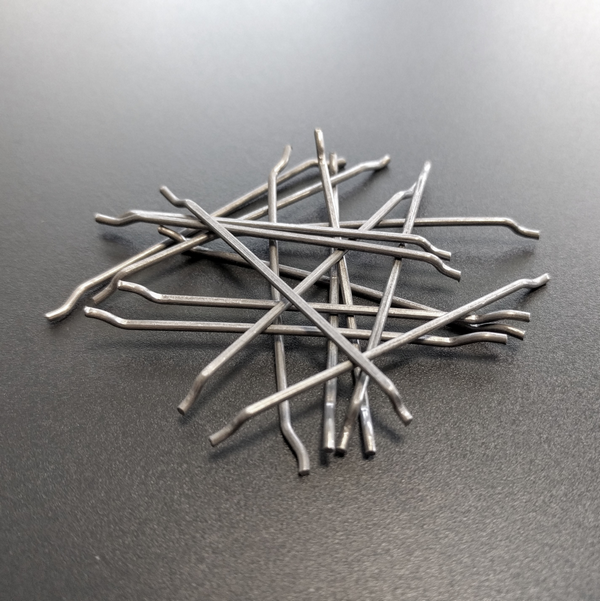

Structural steel fibres for concrete flooring

"Carbon steel fibres, obtained by the cutting of metal wire, with improved adhesion profile, for three-dimensional general structural reinforcement of cement-based conglomerates. The addition of Readymesh MF-500 significantly increases the mechanical performance of the structure in terms of toughness, ductility, fatigue, dynamic stress, shock, wear, tensile and shear strength and even post-cracking and damage behaviour."
Components
Single-component
Appearance
Fibers
Customs code
7326 2000

Request product info

    By submitting I agree to the privacy notice

    Obtained Certifications and Regulations
    EN 14889-1:2006 (System 1)
    Lines of belonging
    Linea prodotto Floor
    Thematic site
    Readymesh
    Where it is used
    How to use
    Technical data
    Additional content
    Warnings and precautions
    Media
    Related products
    Fields of application
    General preparation of fibre-reinforced concrete and structural sprayed concrete (e.g. shotcrete). Particularly suitable for high strength industrial flooring and prefabrication.
    Allowed supports
    Concrete
    Prefabricated concrete
    Mode of use
    "Readymesh MF-500 fibres must be added to the concrete during mixing. It is recommended to pour the fibres directly onto the loading belt of the concrete mixer during the loading of the aggregates. Alternatively, it is possible to add them directly into the mixer after loading the concrete. In this case, add the fibres a little at a time so that they are well-distributed in the cement mix and extend the mixing time by at least one minute for every 20 kg of fibres added in order to achieve optimal distribution.

    Conglomerates with Readymesh MF-500 can be easily transported and used with pumps, joiners, vibratory finishing machines, roadway extruders (e.g. slipform paver), etc."

    Application methods
    To be added to other components
    Key features
    Density
    Density: 7.8 kg/dmยณ
    Diameter
    Diameter: ~1.05 mm
    Highlighted product
    Highlighted product
    Hooked geometry
    Hooked geometry
    Lenght
    Lenght: 50 mm
    Unlimited shelf-life
    Unlimited shelf-life
    Use wearing protective gloves
    Use wearing protective gloves
    UV-resistant
    UV-resistant
    Technical specifications

    Effective length

    52 mm

    Breaking load longitudinal

    1100-1400 N/mmยฒ

    Aspect ratio (l / d)

    50
    Non-toxic material

    Effects on the consistency of fresh concrete (Vebรจ)
    25 kg/mยณ

    9 s

    Linear development

    3770 m/mยณ

    Static elastic modulus

    210000 N/mmยฒ

    Nominal length

    50 mm

    Number of filmanets

    ~2900 nr/kg
    Consumption
    Variable according to the type of work to be carried out and/or performance to be achieved.
    Available colors
    Steel
    Packaging and dimensions
    Bag 20 kg
    Pallet: 50 x (Bag 20 kg)
    Storage and conservation
    Store the product in its original packing, in a fresh and dry environment, avoiding frost and direct sunlight.
    Additional content

    Warnings
    Improper addition of the fibres to the cement mix may cause substantial alterations to the mechanical performance of the concrete itself.The general information, along with any instructions and recommendations for use of this product, including in this data sheet and eventually provided verbally or in writing, correspond to the present state of our scientific and practical knowledge.
    Any technical and performance data reported is the result of laboratory tests conducted in a controlled environment and thus may be subject to modification in relation to the actual conditions of implementation.

    Azichem Srl does not assume any liability arising from inadequate characteristics related to improper use of the product or connected to defects arising from factors or elements unrelated to the quality of the product, including improper storage.
    Those wishing to utilise the product are required to determine prior to use whether or not the same is suitable for the intended use, assuming all consequent responsibility.

    The technical and characteristic details contained in this data sheet shall be updated periodically. For consultation in real time, please visit the website: www.azichem.com. The date of revision is indicated in the space to the side. The current edition cancels out and replaces any previous version.

    Please note that the user is required to read the latest Safety Data Sheet for this product, containing chemical-physical and toxicological data, risk phrases and other information regarding the safe transport, use and disposal of the product and its packaging. For consultation, please visit: www.azichem.com.
    It is forbidden to dispose of the product and/or packaging in the environment.
